Designed for unattended
Multiple Interfaces
High performance
- Screen code scanning
| Image sensor | CMOS | |
| Pixels | 640 x 480 | |
| Shutters | global | |
| Illumination | white LED | |
| Aiming | N/A | |

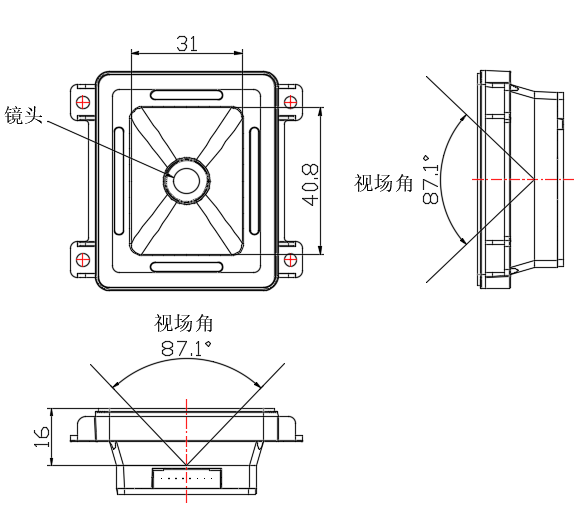

| Field of view | Diagonal 87.1°，Horizontal 74°，Vertical 65° | |
| Symbologies |
2D |
QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* |
EAN-13: (13mil) 5mm~90mm（barcode：31mm*7mm） PDF417 (6mil): 5mm~55mm（barcode：14mm*7mm） Code39 (5mil): 18mm~45mm（barcode：27mm*8mm） Data Matrix (10mil): 5mm~60mm（barcode：5mm*5mm） QR Code (15mil): 5mm~80mm（barcode：10mm*10mm） |
|
| Resolution* | 3mil | |
| Symbol contrast* | ≥20% | |
| Scan angles* | Skew±70°，Pitch±70°，Roll 360° | |

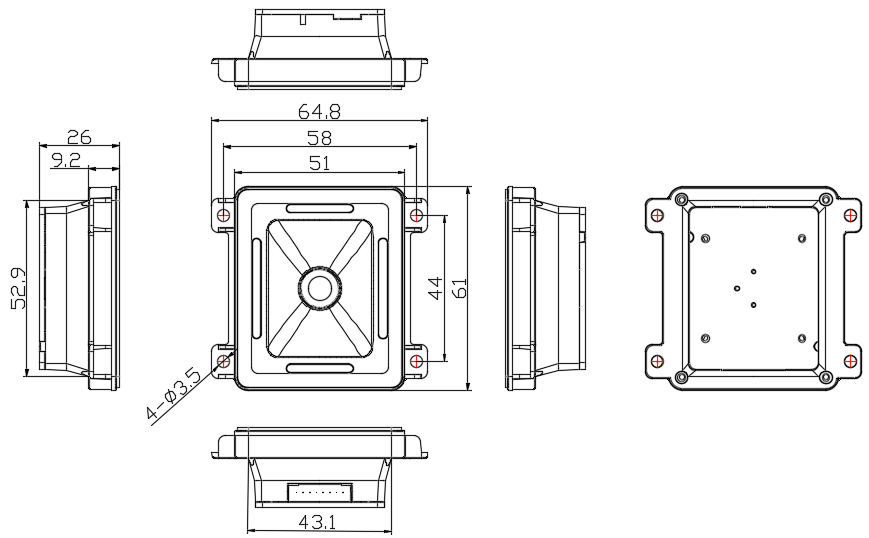

| External Dimension(mm) | 61.1(W)×64.8(D)×26(H) |
| weights | <20g |
| communication interface | USB RS232 |
| Alerts | LED, buzzer signal output |
| operating voltage | 5VDC±5% |
| Operating Current | 210A(RMS Typical)，250mA(RMS Max) |
| Standby Current |
150mA |
| operating temperature | -10℃~+60℃ |
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| Ambient light | 0~100000LUX |
