OEM scan engines
Scan Engines
Miniature 2D imaging engines that give your device a complete barcode reader in a few cubic centimetres.
01Overview
Dokivision scan engines combine a global-shutter CMOS sensor, illumination, aiming and an on-board decoder in one compact unit. They are built for integration into handheld terminals, PDAs, medical instruments, wearables and any product where size, weight and power consumption matter. Choose a hardware-decoded engine for the simplest integration, or a software-decoded engine when you want to run decoding on your own processor.
- Global-shutter sensors for motion tolerance
- UART TTL, USB HID and USB virtual COM
- LED or laser aiming options
- 3.3 V supply with low standby current
02Models
5 scan engines to choose from
Scan Engines

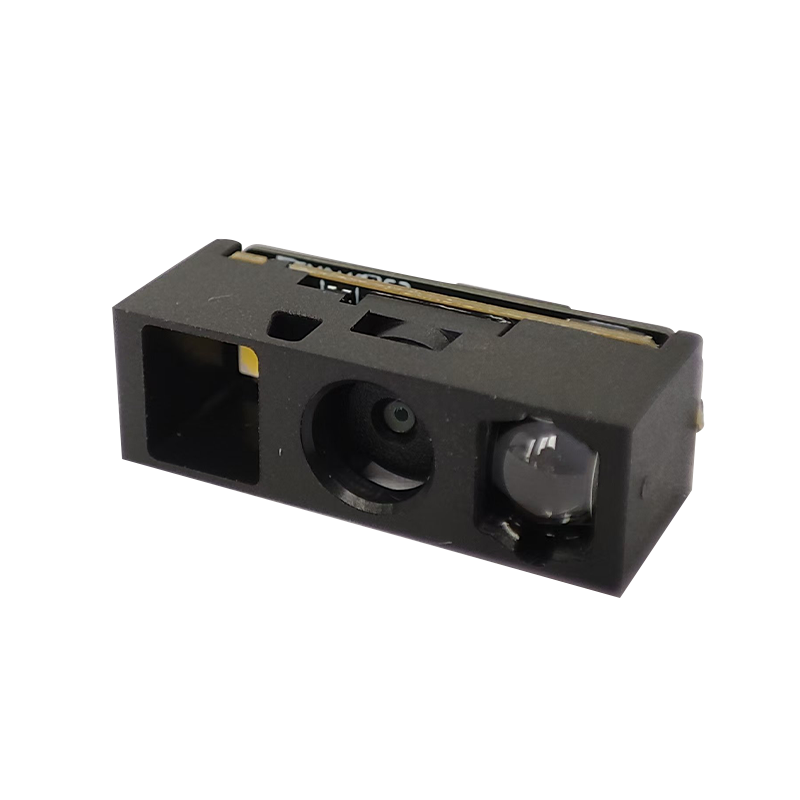

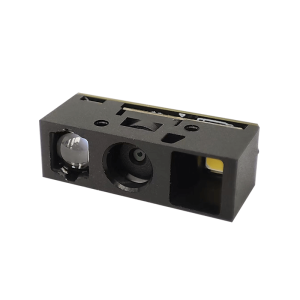

SE10
Compact 2D scan engine for high-volume OEM integration
- Sensor640 × 480, global shutter
- Field of view40.8° × 32°
- InterfacesUART TTL · USB HID · USB VCOM
Scan Engines

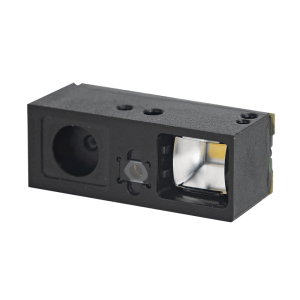

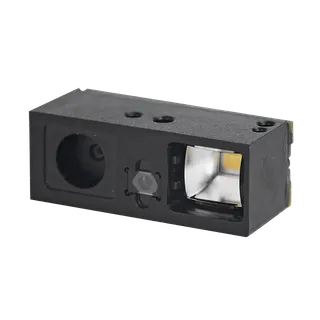

EL13
Compact 2D scan engine with red laser aiming
- Sensor640 × 480, global shutter
- Frame rateUp to 100 fps
- Field of view36.0° × 28.0°
Scan Engines

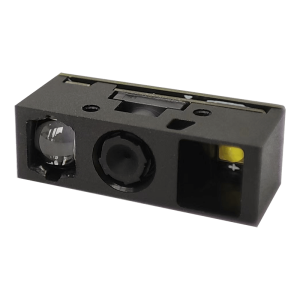

SE20
Megapixel global-shutter 2D scan engine
- Sensor1280 × 800, global shutter
- Field of view39° × 26°
- Min. resolution3.3 mil
Scan Engines

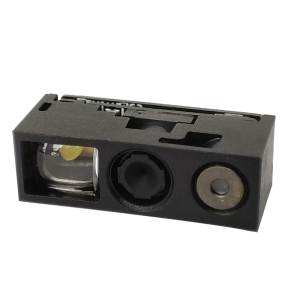

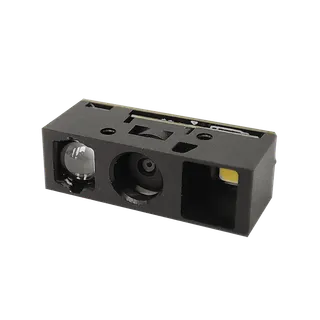

SG20
Megapixel 2D scan engine with laser aiming
- Sensor1280 × 800, global shutter
- AimingLaser
- Field of view39° × 26°
Scan Engines

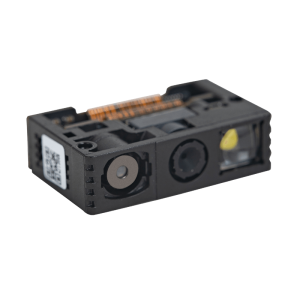

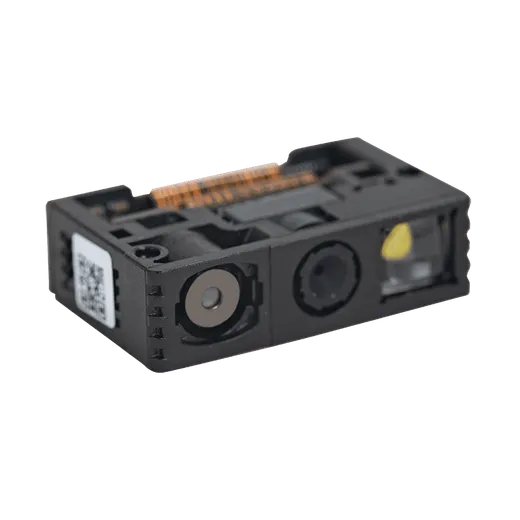

E20
Ultra-compact megapixel engine for software decoding
- Sensor1280 × 800, global shutter
- Frame rateUp to 60 fps
- Field of view39.5° × 26.1°
03Comparison
Specifications side by side
| Model | Key specifications | Typical use |
|---|---|---|
| SE10 | Sensor640 × 480, global shutterField of view40.8° × 32°InterfacesUART TTL · USB HID · USB VCOMSize21.5 × 7.0 × 9.9 mmOperating temp.-20 to 65 °C | Mobile computers and PDAs, Retail and payment terminals, Medical and laboratory devices |
| EL13 | Sensor640 × 480, global shutterFrame rateUp to 100 fpsField of view36.0° × 28.0°Size21.6 × 10.28 × 8.1 mmWeight1.5 g (typical) | PDAs and enterprise handhelds, Medical devices, Retail kiosks |
| SE20 | Sensor1280 × 800, global shutterField of view39° × 26°Min. resolution3.3 milInterfacesUART TTL · USB HID · USB VCOMSize21.5 × 7.0 × 9.9 mm | Industrial PDAs, Logistics and parcel sorting, Manufacturing traceability |
| SG20 | Sensor1280 × 800, global shutterAimingLaserField of view39° × 26°InterfacesUART TTL · USB HID · USB VCOMSize21.5 × 7.0 × 9.9 mm | Handheld barcode scanners, Retail and office devices, Mobile computers |
| E20 | Sensor1280 × 800, global shutterFrame rateUp to 60 fpsField of view39.5° × 26.1°Size23.4 × 16.15 × 6.8 mmWeight2.6 g (typical) | Android handheld terminals, Rugged smartphones and tablets, Wearable computers |
04Applications
Typical uses
Logistics & warehousing
Global-shutter engines capture codes on moving parcels and conveyor lines. Rugged handhelds keep working through long receiving, picking and dispatch shifts.
Manufacturing & traceability
Track components, work-in-progress and finished goods with reliable reading of small, dense or directly marked codes under changing factory lighting.
Healthcare & laboratory
Compact, low-power engines for patient wristband readers, sample tube tracking and diagnostic instruments where space and heat budgets are tight.
Start a project
Tell us what you need to scan
Share your device, code types and reading distance. Our engineers will recommend a model and arrange evaluation samples.
