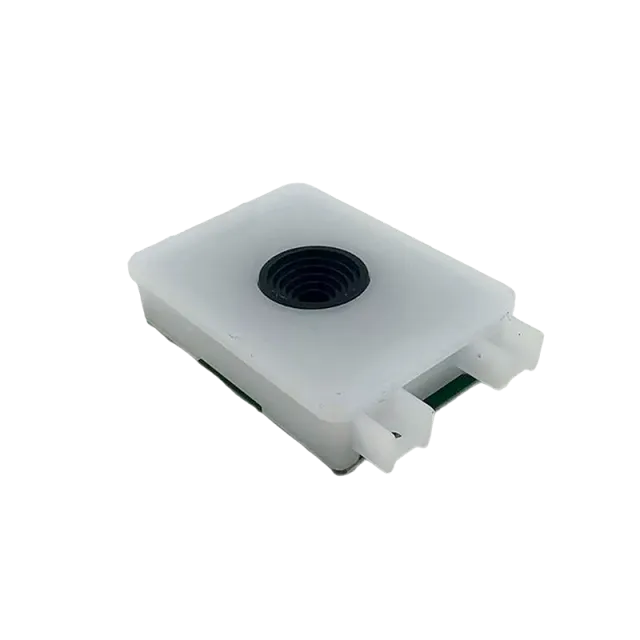

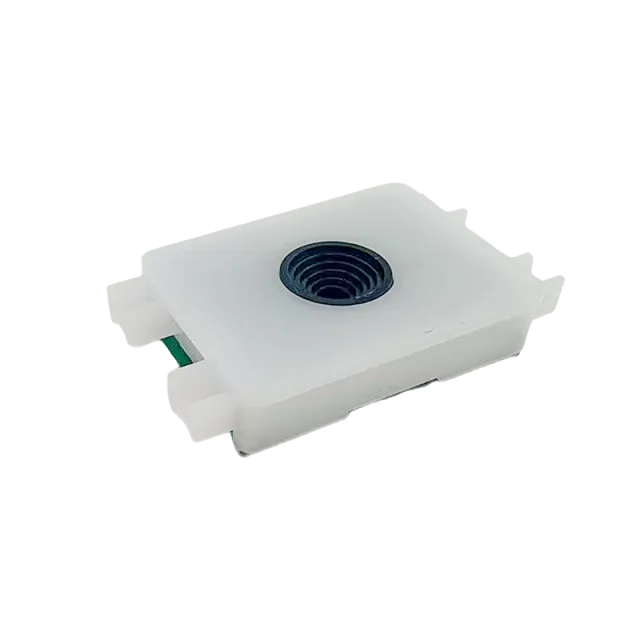

Compact design
A slim 13.1 mm profile fits narrow panels, validators and handheld terminals.
- Sensor
- 640 × 480 CMOS
- Field of view
- 72° × 54°
- Interfaces
- USB · TTL · RS485
- Size
- 55 × 33.4 × 13.1 mm
- Operating temp.
- -20 to 60 °C
01Overview

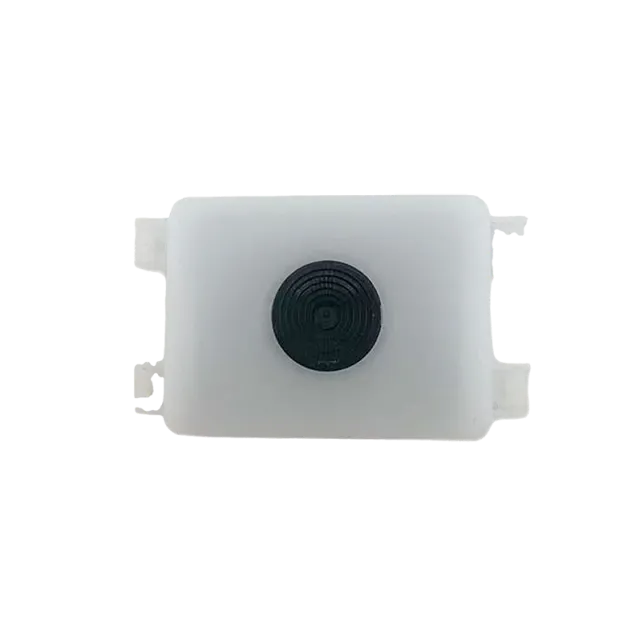

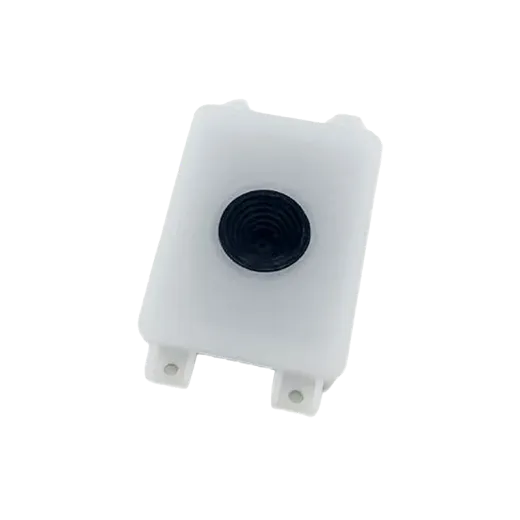

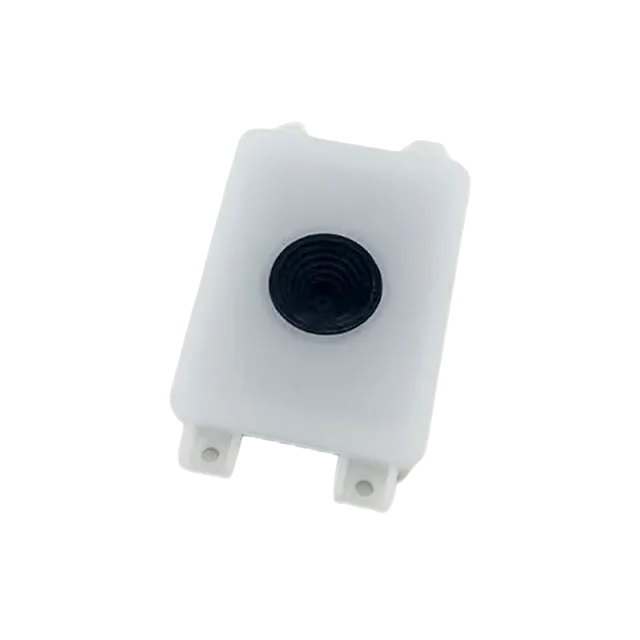

Embedded 2D scan module for kiosks and turnstiles
The EM20 is a 27 g embedded reader measuring 55 × 33.4 × 13.1 mm, built to sit behind a window in a kiosk, gate or payment terminal. A 72° × 54° field of view lets users present a code without careful positioning.
It reads payment and ticket codes from phone screens as well as printed labels, in ambient light from darkness up to 100,000 lux. Status lighting is white while reading and green on success, and the RGB colour can be customized to match your product.
- Compact Design for different system
- Multiple Interfaces
- Global shutter
- Screen code reading
02Key features
What sets the EM20 apart
Multiple interfaces
USB HID or virtual serial, TTL serial and RS485 cover most controllers.
Global shutter
Reads codes on the move as users walk past a gate or validator.
Screen code reading
Tuned for mobile payment and e-ticket codes shown on phone displays.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| imaging sensor | 640×480CMOS | |
|---|---|---|
| lighting | Default: white for working state, green for success; customizable RGB color | |
| Symbologies | 2D | PDF417,DataMatrix,QRCode，HanXin，AZTEC， maxicode |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Interlea- ved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Coda bar, Standard 2 of 5, MSI-Plessey, GS1 composite code, etc | |
| Reading accuracy * | 1D≥5mil2D≥7mil | |
| Typical reading depth of field * | 25-170mm Alipay payment code | |
| 35-145mmEAN1313mil | ||
| Contrast of symbols* | ≥20% | |
| Barcode sensitivity** | Tilt ±55°, deflection ±55°, rotation 360° | |
| Field of view Angle | Horizontal 72°, vertical 54° | |
Mechanical/electrical parameters
| communication interface | USB (optional, HID, virtual serial port), TTL serial port, RS485 |
|---|---|

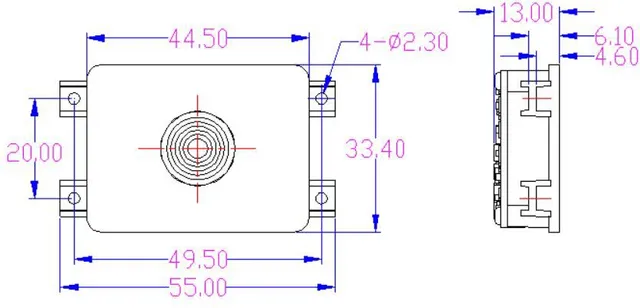

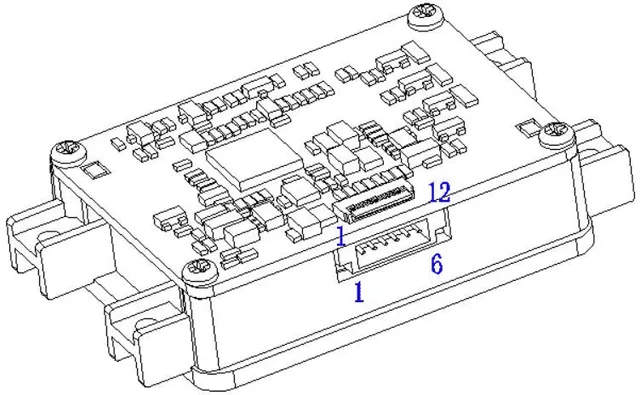

| Outer dimension (mm) | 55(D)×33.4(W)×13.1Max(H) |
| weight | 27g |
| working voltage | Default: 5V Customizable 3.3V power supply |
| rated current | (Typical value) less than 220mA (5V input) |
Environmental parameters
| working temperature | -20℃~+60℃ |
|---|---|
| storage temperature | -40℃~+70℃ |
| Working humidity | 5%~95% (no condensation) |
| Environmental lighting | 0~100,000LUX |
04Applications
Where the EM20 fits
Downloads & support
EM20 datasheetPDF documentNeed an SDK, configuration tool, 3D model or samples? Our application engineers will send what your project needs.
