Compact 2D scan engine for high-volume OEM integration
- Sensor
- 640 × 480, global shutter
- Field of view
- 40.8° × 32°
- Interfaces
- UART TTL · USB HID · USB VCOM
- Size
- 21.5 × 7.0 × 9.9 mm
- Operating temp.
- -20 to 65 °C
01Overview
Compact 2D scan engine for high-volume OEM integration

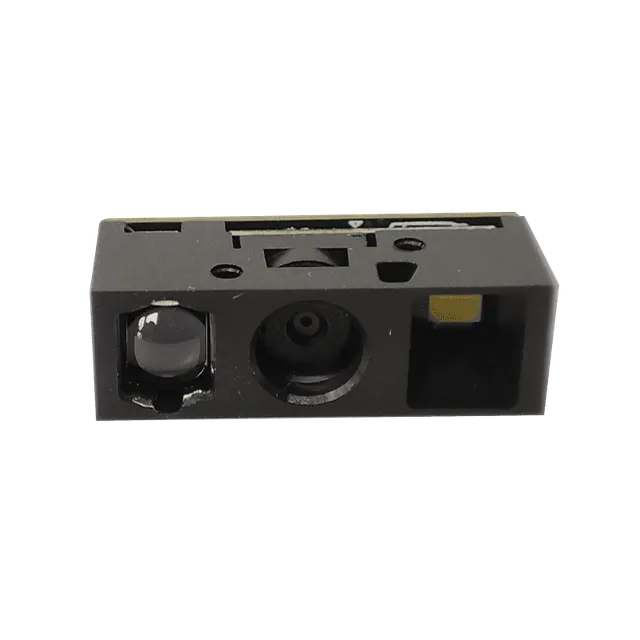

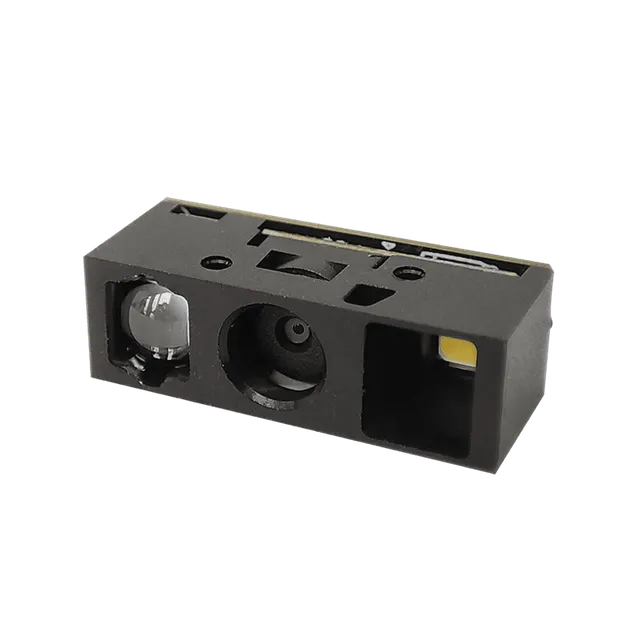

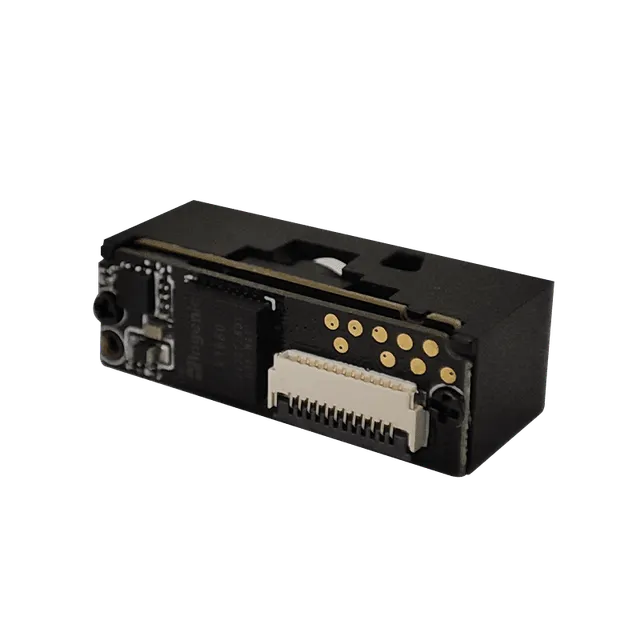

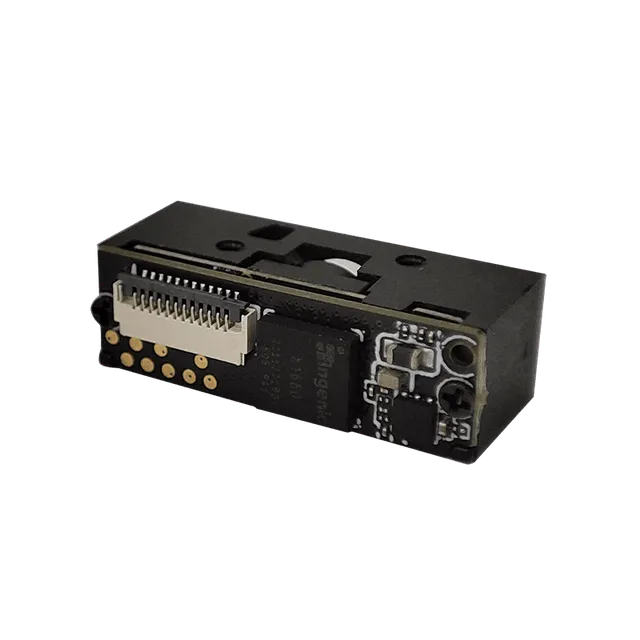

The SE10 is a complete 2D barcode reader in a 21.5 × 7.0 × 9.9 mm package weighing less than 5 g. A global-shutter CMOS sensor, white LED illumination, red LED aiming and an on-board decoder are integrated in a single unit, so your host only needs to supply 3.3 V and read decoded data.
It is a cost-effective choice for products shipped in volume: handheld terminals, retail devices, medical instruments and consumer equipment that need dependable 1D and 2D reading without a large power or space budget.
- Compact & Lightweight Design
- Multiple Interfaces
- High performance
- Led aiming
02Key features
What sets the SE10 apart
Multiple interfaces
UART TTL, USB HID keyboard and USB virtual COM are supported on the same engine.
High performance
Reads codes down to 3 mil with 360° tilt and ±60° pitch and skew tolerance.
LED aiming
A clear red aiming pattern shows the operator exactly where the engine is reading.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | CMOS | |
|---|---|---|
| Pixels | 640 x 480 | |
| Shutters | global | |
| Illumination | white LED | |
| Aiming | Red LED | |

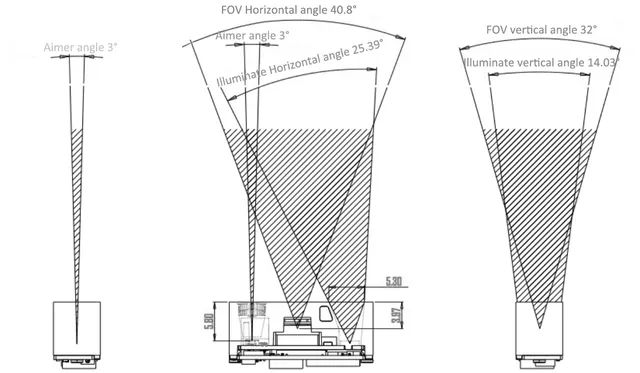

| Field of view | 40.8° horizontal, 32° vertical | |
| Symbologies | 2D | QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | 5mil CODE39: 3.5~16cm 13mil EAN13: 5~34cm 10mil Datamatrix: 3.5-18cm 10mil QR: 3~15cm 10mil PDF417: 3~21cm | |
| Resolution* | 3mil | |
| Symbol contrast* | ≥20% | |
| Scan angles* | tilt: 360°, pitch: ±60°, skew: ±60° | |

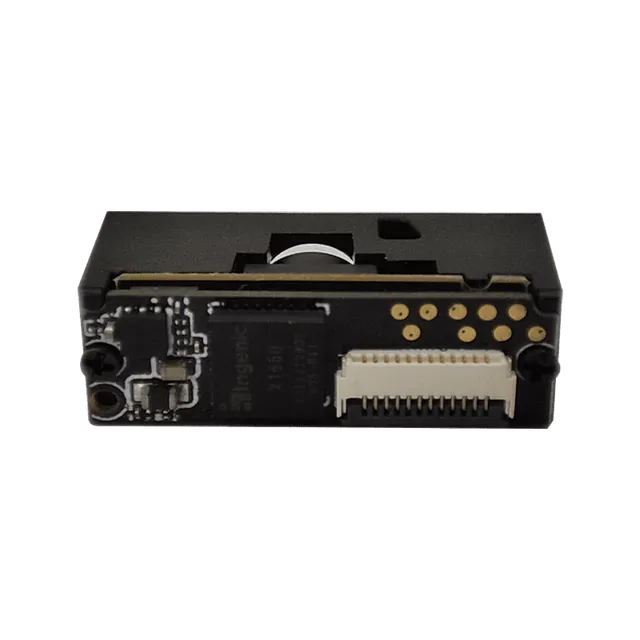

Mechanical/electrical parameters

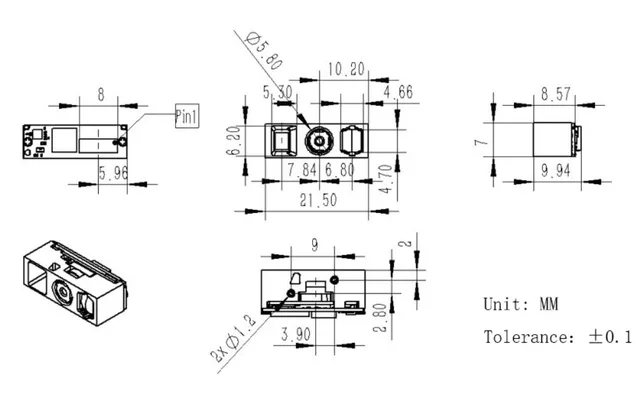

| External Dimension(mm) | 21.5(L) x 7.0(W) x 9.9(D) |
|---|---|
| weights | <5g |
| communication interface | UART TTL, USB HID, USB VCOM |
| Alerts | LED, buzzer signal output |
| operating voltage | 3.2~3.6V |
| Operating Current | 230mA@3.3V (sweep state, average current) |
| Standby Current | 40mA@3.3V (standby, USB off) 45mA@3.3V (standby, USB on) |
Environmental parameters
| operating temperature | -20℃~65℃ |
|---|---|
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| Ambient light | 0~100000LUX |
04Applications
Where the SE10 fits
