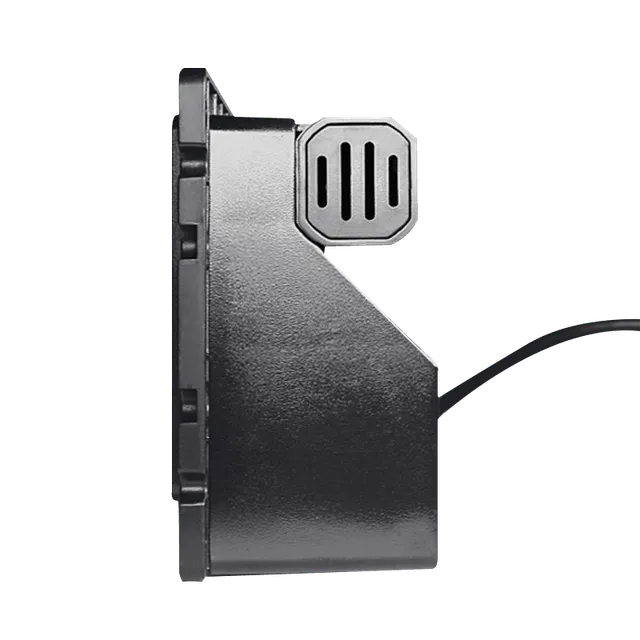

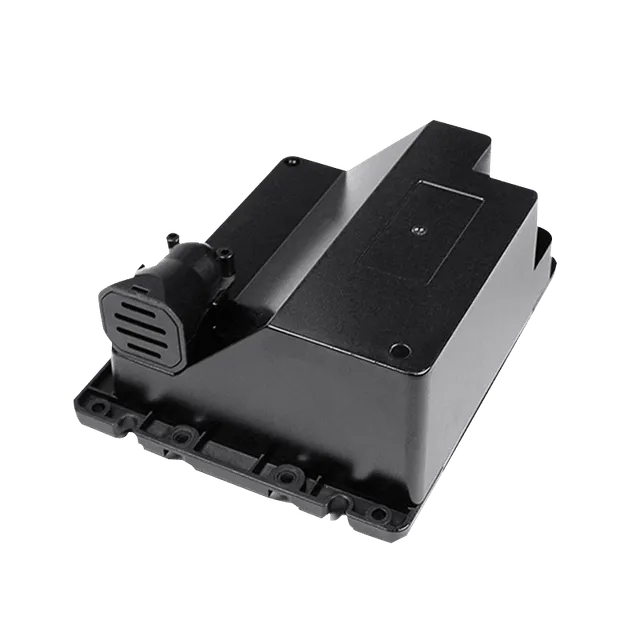

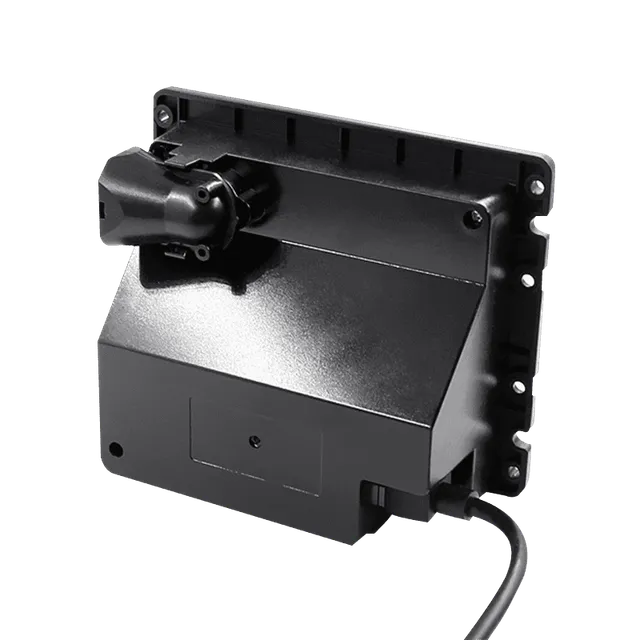

Industrial-grade design
IP52-rated housing built for continuous operation in public installations.
- Sensor
- 1280 × 800, global shutter
- Field of view
- 60° × 40°
- Interfaces
- USB · RS232
- Protection
- IP52
- Size
- 115.2 × 96.2 × 50.6 mm
01Overview

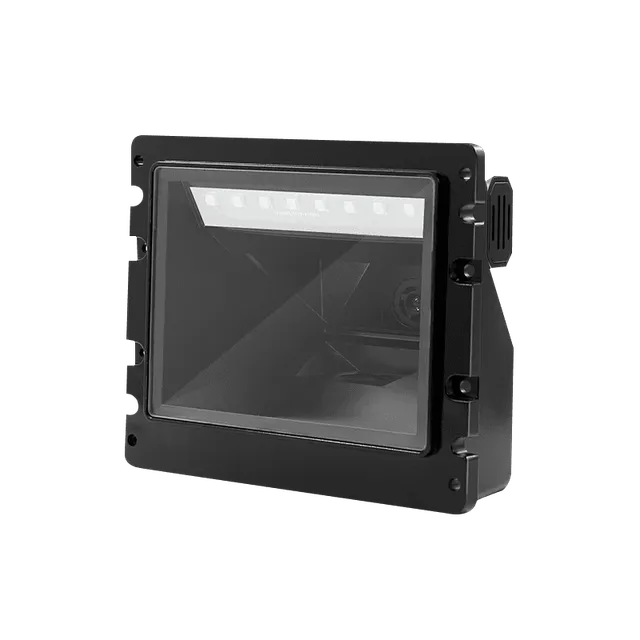

Wide-angle embedded 2D scan module, industrial grade
The EM95 is a megapixel fixed-mount module with a 1280 × 800 global-shutter sensor and red LED illumination. It reads from contact out to 200 mm on 13 mil EAN-13, across a 60° × 40° field of view.
An IP52-rated housing and USB or RS232 connection make it suitable for parking, transit and kiosk installations that run unattended around the clock.
- Industrial grade Design
- Multiple Interfaces
- Wide reading angle
- Unattended
02Key features
What sets the EM95 apart
Multiple interfaces
USB and RS232 with LED and buzzer signalling.
Wide reading angle
A 60° × 40° field of view covers large tickets and phones held at any angle.
Unattended operation
Automatic reading with no trigger: present the code and go.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | CMOS | |
|---|---|---|
| Pixels | 1280*800 | |
| Shutters | global | |
| Illumination | Red LED | |
| Aiming | N/A | |
| Field of view | Horizontal 60°，Vertical 40° | |
| Symbologies | 2D | QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | EAN-13 (13mil): 0mm~200mm（barcode：31mm*15mm） Code39 (5mil): 0mm~100mm（barcode：10mm*6mm） | |
| Resolution* | 3mil | |
| Symbol contrast* | ≥20% | |
Mechanical/electrical parameters

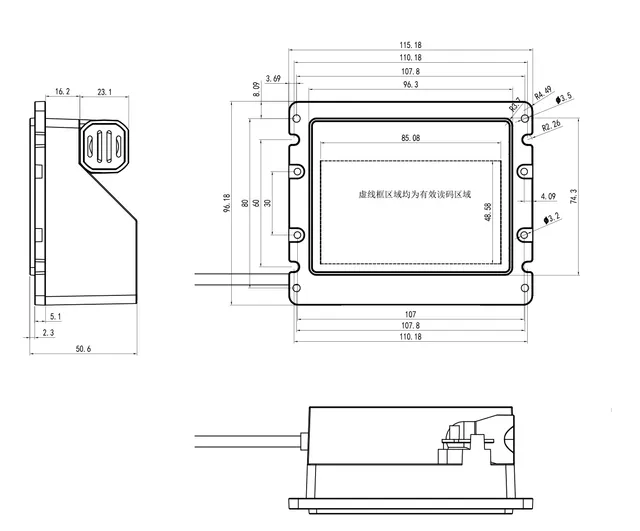

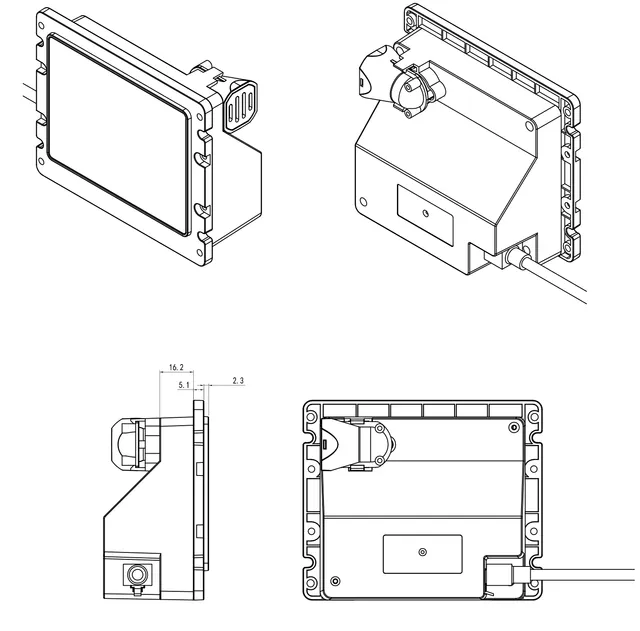

| External Dimension(mm) | 115.2(W)×96.2(D)×50.6(H) |
|---|---|
| weights | 220g（not include cable） |
| communication interface | USB RS232 |
| Alerts | LED, buzzer signal output |
| operating voltage | 5 VDC±5% |
| Operating Current | 250mA(RMS Typical)，320mA(RMS Max) |
| Standby Current | 150mA |
Environmental parameters
| operating temperature | 0℃~+60℃ |
|---|---|
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| IP Rating | IP52 |
04Applications
Where the EM95 fits
Downloads & support
EM95 datasheetPDF documentNeed an SDK, configuration tool, 3D model or samples? Our application engineers will send what your project needs.
