Compact & lightweight design
Roughly 1.5 g and 8.1 mm high, for thin handheld and wearable products.
- Sensor
- 640 × 480, global shutter
- Frame rate
- Up to 100 fps
- Field of view
- 36.0° × 28.0°
- Size
- 21.6 × 10.28 × 8.1 mm
- Weight
- 1.5 g (typical)
01Overview

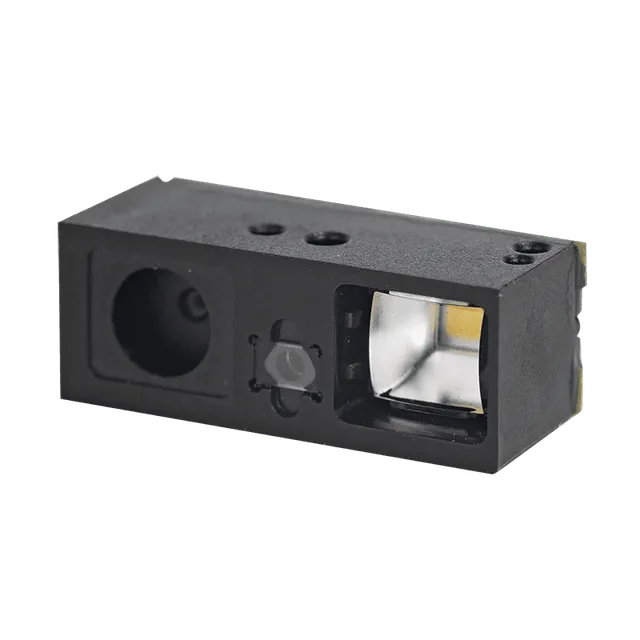

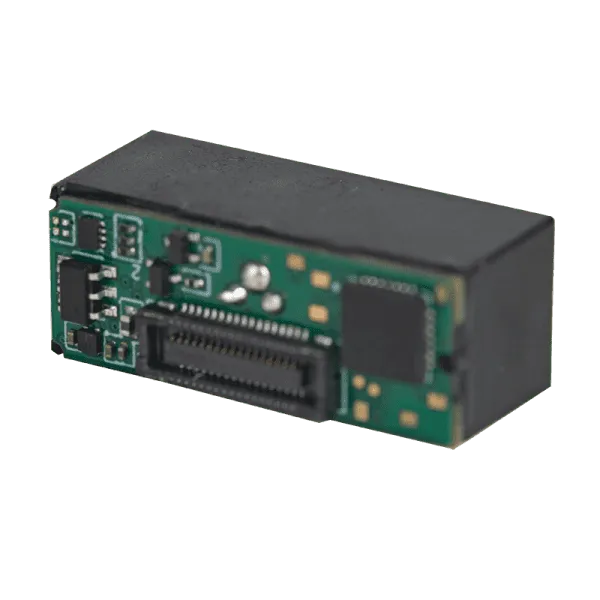

Compact 2D scan engine with red laser aiming
The EL13 pairs a 640 × 480 global-shutter sensor running at up to 100 frames per second with a sharp red laser aimer. At 21.6 × 10.28 × 8.1 mm and around 1.5 g, it is one of the lightest engines in the Dokivision range.
The high frame rate makes scanning feel instant, and the laser aimer stays visible at longer distances and in bright light. The engine is qualified for 1.2 m drops and vibration, making it suitable for handheld devices that are used hard.
- Compact & Lightweight Design
- Multiple Interfaces
- High performance
- Led aiming
02Key features
What sets the EL13 apart
Multiple interfaces
Standard engine connections simplify drop-in integration with common host platforms.
High performance
Up to 100 fps capture with a reading range of 55–400 mm on 13 mil EAN-13.
Precise aiming
A red laser aimer pinpoints the target code among many on a crowded label.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | Mono CMOS | |
|---|---|---|
| Pixel | 640(H)× 480(V) | |
| Shutter | Global shutter | |
| Frame rate | Up to 100fps | |
| Illumination | White light | |
| Aiming | Red laser | |

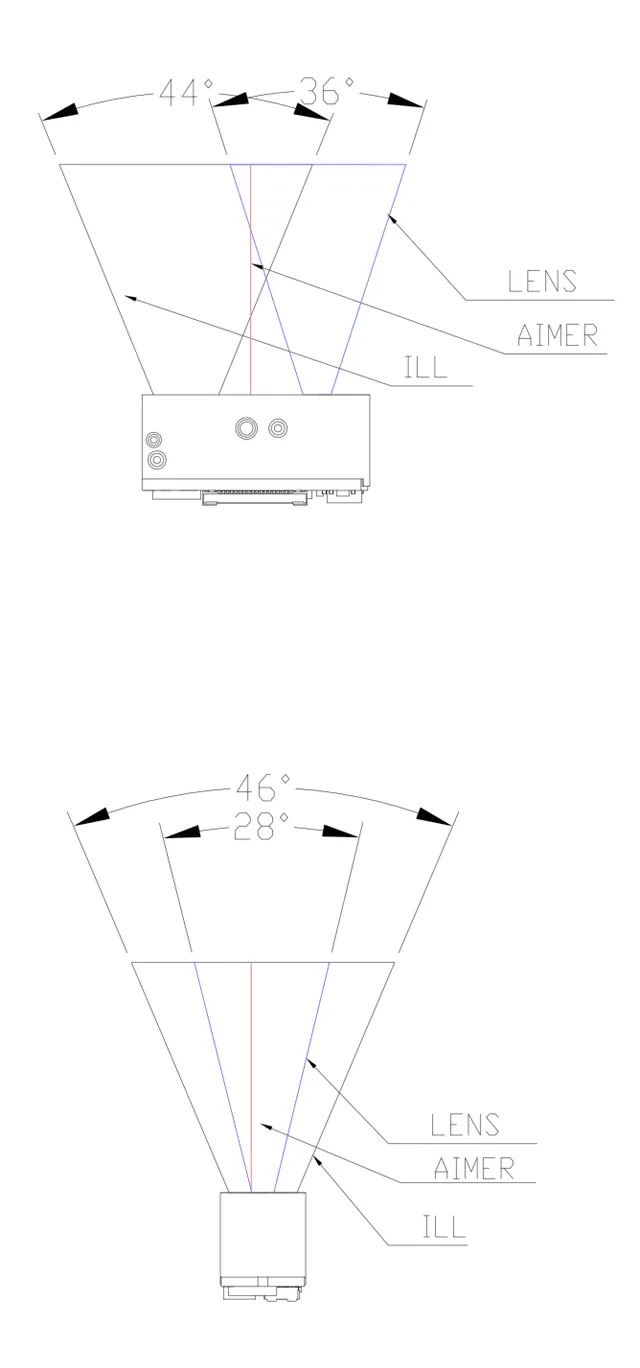

| Field of view | Horizontal 36.0°,Vertical 28.0° | |
| Decode type | 2D | PDF417, MicroPDF417,Composite Code,Data Matrix,Maxicode, QR Code, MicroQR, Aztec , etc |
| 1D | UPC/EAN, UPC/EAN with supplementals,Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93,Code11, Matrix 2 of 5, Interleaved 2 of 5,IATA 2 of 5,Industrial 2 of 5,Codabar,CodablockF,MSI,Telepen,Code11,GS1 DataBar variants | |
| Postal Code | Australian Post，British Post，China Post，Japanese Post，KIX Post，Korea Post，Planet Code，Postnet，Royal Mail Code (RM4SCC), etc | |
| DOF* | EAN-13(13mil) | 55~400mm |
| Code 39(20mil) | 60~500mm | |
| Code 39(10mil) | 80~310mm | |
| Data Matrix(15mil) | 30~270mm | |
| Data Matrix(10mil) | 40~190mm | |
| Resolution* | 1D Code 39:5mil,2D Data Matrix:9mil | |
| Contrast* | ≥25% | |
| Angle ** | pitch | ±60° |
| tilt | ±180° | |
| skew | ±60° | |
Mechanical/electrical parameters

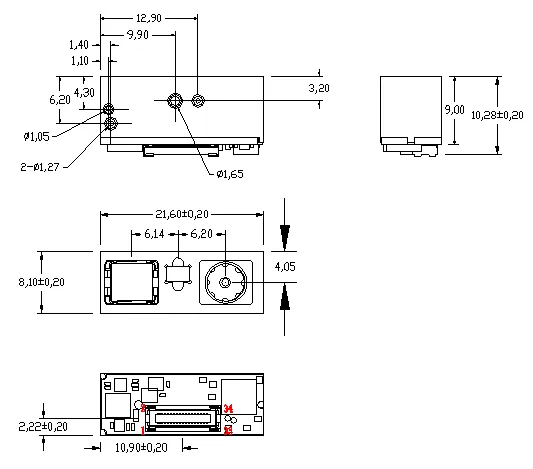

| Dimensions(mm) | 21.6(W)×10.28(D)×8.1(H) |
|---|---|
| Weight | 1.5g(typical) |
| Operating voltage | VCC：3.0~3.6V VCC_IO：3.0~3.6V |
| Operating current | 90mA(Maximum)@VCC 3.3V |
| Standby current | 60mA(Maximum)@VCC 3.3V |
Environmental parameters
| Operating temperature | -20℃~+50℃ |
|---|---|
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95%（No-condensation） |
| Operating vibration | 10~150HZ, 0.5G, triaxial direction,1min/oct, 1 time/axial |
| Durable vibration | 10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial |
| Fall test | Withstand 1.2m drop to cement floor (50 times of 1.2m repeated) |
04Applications
Where the EL13 fits
