Compact & lightweight design
120 g without cable, with an ergonomic pistol grip.

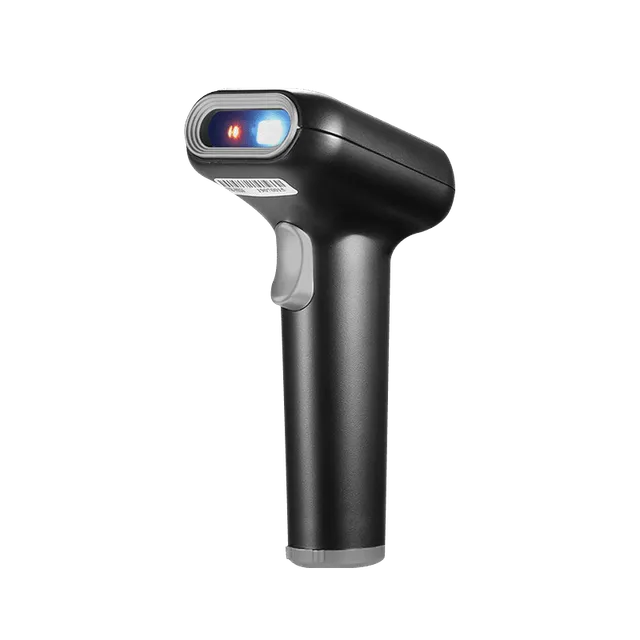

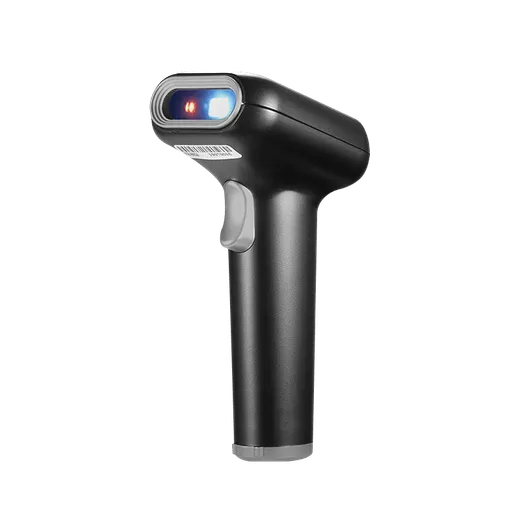

Barcode Scanner
HS230
Industrial handheld 2D scanner with IP52 protection
- Field of view
- 51° × 43°
- Interfaces
- USB · USB-COM · RS232
- Protection
- IP52
- Weight
- 120 g (without cable)
- Operating temp.
- -10 to 60 °C
01Overview
Industrial handheld 2D scanner with IP52 protection
The HS230 is a 120 g handheld scanner with a wide 51° × 43° field of view, reading 20 mil QR codes from 20 to 300 mm. It offers USB, USB-COM and RS232 connections for use with PCs, terminals and industrial controllers.
IP52 sealing and ESD protection to ±8 kV (air discharge) make it a dependable tool for workshops, warehouses and service counters.
- Compact & Lightweight Design
- Multiple Interfaces
- High performance
- Laser aiming
02Key features
What sets the HS230 apart
Multiple interfaces
USB, USB-COM and RS232 for PCs and industrial controllers.
High performance
Sensitive decoding of low-contrast codes with ±70° skew tolerance.
Clear aiming
White illumination with a red aiming pattern for quick targeting.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image Sensor | CMOS |
|---|---|
| Resolution | 640*800 |
| Illumination I Aiming | White LED I Red LED |
| 2D Symbologies | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec |
| 1D Symbologies | EAN13, EAN8, UPCA, UPC-EO, UPC-E1, Code128, Code39, Code93,Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI,RSS |
| Typical Decode Range | UPC13 (13mil):40mm~ 350mm (Bar Code Size: 17mm*31mm) Code39 (20mil):70mm~500mm (Bar Code Size: 6mm*21mm) |
| QR Code (20mil)20mm~300mm (Bar Code Size: 10mm*10mm) | |
| Min Print Contrast / FOV | ≥20% | Horizontal 51°, Vertical 43° |
| Scan Angle | Skew±70°, Pitch+70°, Roll 360° |
Mechanical/electrical parameters
| Interface / Input Voltage | USB, USB-COM, RS232 | 3.2V~3.6V |
|---|---|
| Dimensions / Weight | 168(W)×85(D)×62(H) mm | 120g (not include cable) |
| Working Current | 950 mW (Typical) |
Environmental parameters
| Temperature (Op/Storage) | Operating: -10°C~+60°C | Storage: -40°C~+70°C |
|---|---|
| Humidity / IP Rating | 5%~95% (Non-Condensing) | IP52 |
| ESD Protection | ±8kV (air discharge), ±4kV (direct discharge) |
04Applications
Where the HS230 fits
Downloads & support
HS230 datasheetPDF documentNeed an SDK, configuration tool, 3D model or samples? Our application engineers will send what your project needs.
