Handheld & desktop scanners
Barcode Scanner
Finished scanners powered by Dokivision engines for daily use in stores, warehouses and factories.
01Overview
Dokivision handheld scanners put our decoding technology directly in the operator’s hand. Ergonomic housings, clear aiming and fast decoding keep scanning comfortable across long shifts, while sealed, drop-resistant construction stands up to industrial environments. Wired USB and serial models are available, with wireless options for OEM projects.
- Ergonomic design for all-day use
- Reads damaged and low-contrast codes
- USB HID, USB COM and RS232
- IP52-rated industrial models
02Models
4 barcode scanner to choose from
Barcode Scanner

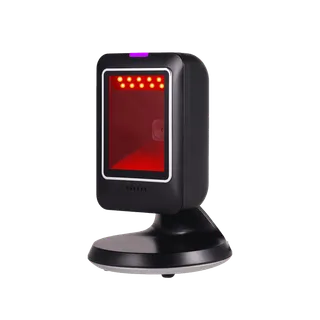

DTS301
Desktop 2D barcode scanner for retail and mobile payment
- SensorGlobal-shutter CMOS
- Field of view40.8° × 32°
- InterfacesUART TTL · USB HID · USB VCOM
Barcode Scanner

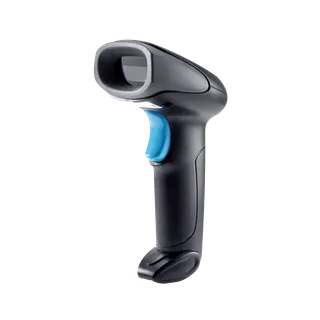

HS21
Industrial handheld barcode scanner for logistics and manufacturing
- Sensor640 × 480, global shutter
- Field of view40.8° × 32°
- InterfacesUART TTL · USB HID · USB VCOM
Barcode Scanner
HS31
High-performance handheld 2D scanner
- Field of view40.8° × 32°
- InterfacesUSB · USB-COM
- ProtectionIP52
Barcode Scanner

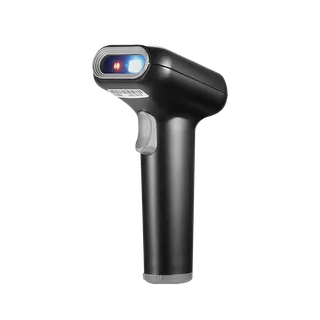

HS230
Industrial handheld 2D scanner with IP52 protection
- Field of view51° × 43°
- InterfacesUSB · USB-COM · RS232
- ProtectionIP52
03Comparison
Specifications side by side
| Model | Key specifications | Typical use |
|---|---|---|
| DTS301 | SensorGlobal-shutter CMOSField of view40.8° × 32°InterfacesUART TTL · USB HID · USB VCOMMin. resolution3 milOperating temp.-20 to 65 °C | Retail checkout, Mobile payment acceptance, Restaurants and cafés |
| HS21 | Sensor640 × 480, global shutterField of view40.8° × 32°InterfacesUART TTL · USB HID · USB VCOMMin. resolution3 milOperating temp.-20 to 65 °C | Warehouse receiving and picking, Parcel and courier operations, Production line tracking |
| HS31 | Field of view40.8° × 32°InterfacesUSB · USB-COMProtectionIP52Weight105 g (without cable)Operating temp.-20 to 65 °C | Electronics manufacturing, Automotive parts tracking, Warehouse operations |
| HS230 | Field of view51° × 43°InterfacesUSB · USB-COM · RS232ProtectionIP52Weight120 g (without cable)Operating temp.-10 to 60 °C | Workshop and assembly stations, Warehouse and stock rooms, Retail counters |
04Applications
Typical uses
Retail & point of sale
Counter-top scanners and embedded modules that read printed labels and mobile payment codes at checkout speed, including loyalty apps and e-coupons shown on phone screens.
Logistics & warehousing
Global-shutter engines capture codes on moving parcels and conveyor lines. Rugged handhelds keep working through long receiving, picking and dispatch shifts.
Manufacturing & traceability
Track components, work-in-progress and finished goods with reliable reading of small, dense or directly marked codes under changing factory lighting.
Start a project
Tell us what you need to scan
Share your device, code types and reading distance. Our engineers will recommend a model and arrange evaluation samples.
