Compact & lightweight design
Megapixel performance in a sub-5 g engine that is mechanically compatible with the SE10.
- Sensor
- 1280 × 800, global shutter

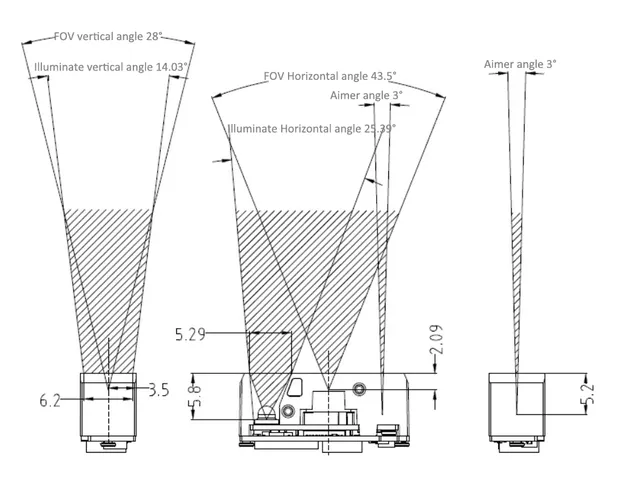

- Field of view
- 39° × 26°
- Min. resolution
- 3.3 mil
- Interfaces
- UART TTL · USB HID · USB VCOM
- Size
- 21.5 × 7.0 × 9.9 mm
01Overview

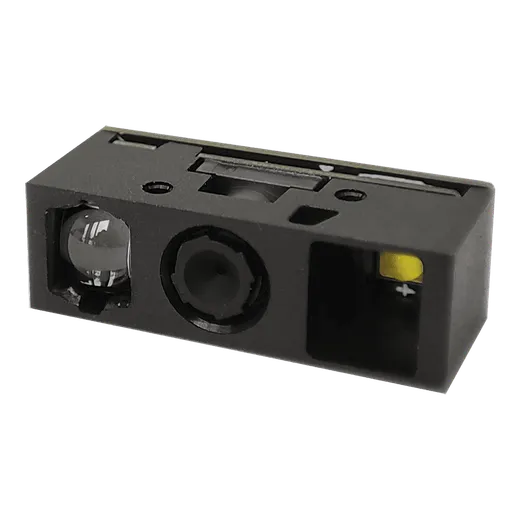

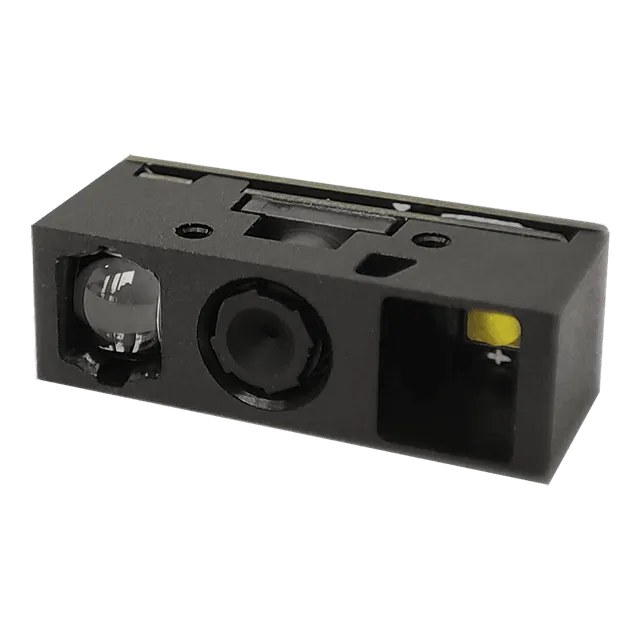

Megapixel global-shutter 2D scan engine
The SE20 brings a 1280 × 800 global-shutter sensor to the same 21.5 × 7.0 × 9.9 mm footprint as the SE10. The extra resolution extends the reading range — 13 mil EAN-13 codes are read from 5 to 72 cm — and resolves dense codes down to 3.3 mil.
With a minimum symbol contrast of 10%, the SE20 is built for demanding work: faded labels, small high-density codes and items moving past the reader in logistics and industrial applications.
- Compact & Lightweight Design
- Multiple Interfaces
- High performance
- Global shutter
02Key features
What sets the SE20 apart
Multiple interfaces
UART TTL, USB HID keyboard and USB virtual COM on one engine.
High performance
Reads 3.3 mil codes and low-contrast symbols down to 10% contrast.
Global shutter
Freezes motion for reliable reading on conveyors and in fast hand movements.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | CMOS | |
|---|---|---|
| Pixels | 1280 x 800 | |
| Shutters | global | |
| Illumination | white LED | |
| Aiming | red LED | |
| Field of view | Horizontal 39°, Vertical 26° | |
| Symbologies | 2D | QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | 3.3mil CODE39: 10~20cm 5mil CODE39: 7~32cm 13mil EAN13: 5~72cm 15mil QR: 3~40cm 10mil DataMatrix: 8~28cm 6.7mil PDF417: 9.5~27cm | |
| Resolution* | 3.3mil | |
| Symbol contrast* | ≥10% | |
| Scan angles* | tilt: 360°, pitch: ±60°, skew: ±60° | |
Mechanical/electrical parameters
| Dimension(mm) | 21.5(L) x 7.0(W) x 9.9(D) |
|---|---|
| weights | <5g |
| communication interface | UART TTL, USB HID, USB VCOM |
| Alerts | LED, buzzer signal output |
| operating voltage | 3.2~3.6V |
| Operating Current | 280mA@3.3V (sweep state, average current) |
| Standby Current | 40mA@3.3V (standby, USB off) 45mA@3.3V (standby, USB on) |
Environmental parameters
| operating temperature | -20℃~65℃ |
|---|---|
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| Ambient light | 0~100000LUX |
