Scan Module

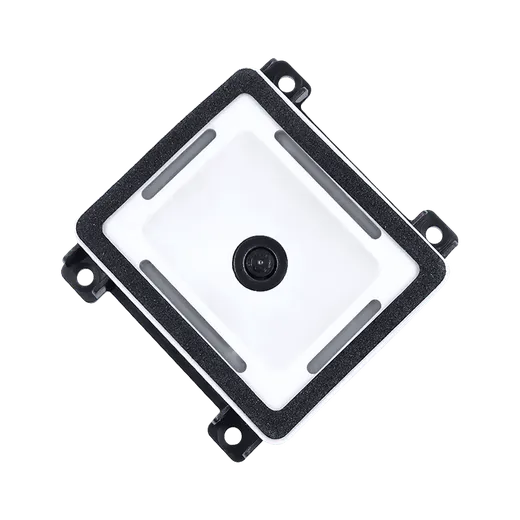

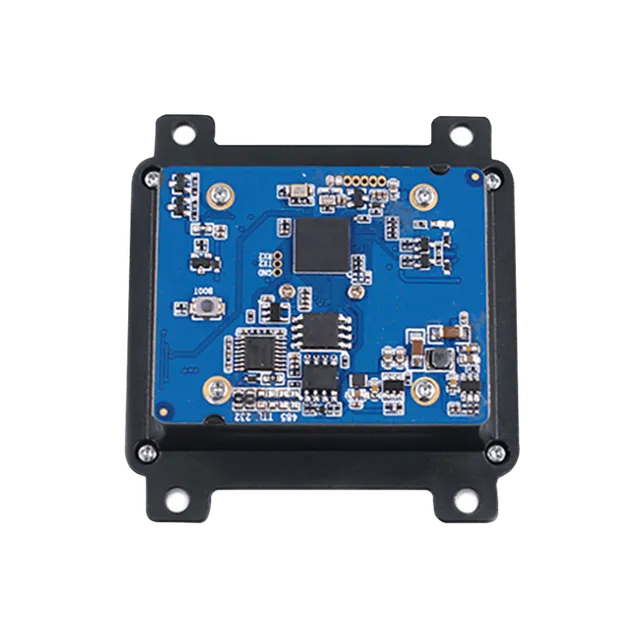

EM48

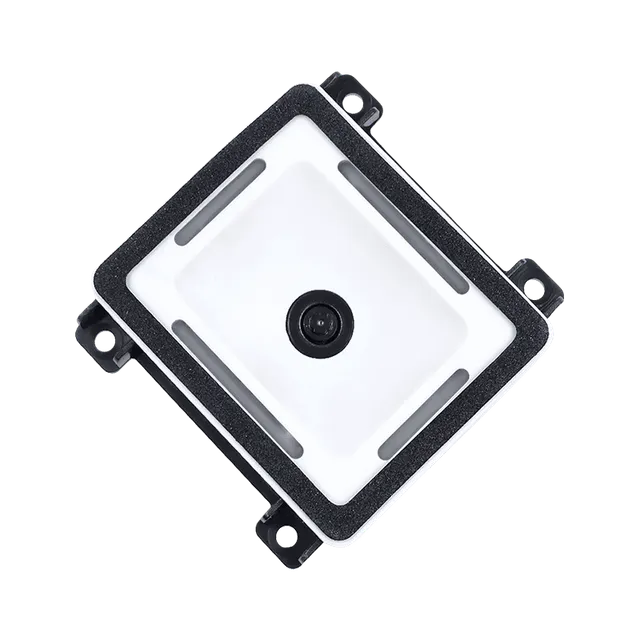

Compact embedded 2D scan module for unattended terminals
- Sensor
- 640 × 480, global shutter
- Field of view
- 74° × 65°
- Interfaces
- USB · RS232
- Size
- 61.1 × 64.8 × 26 mm
- Operating temp.
- -10 to 60 °C
01Overview
Compact embedded 2D scan module for unattended terminals

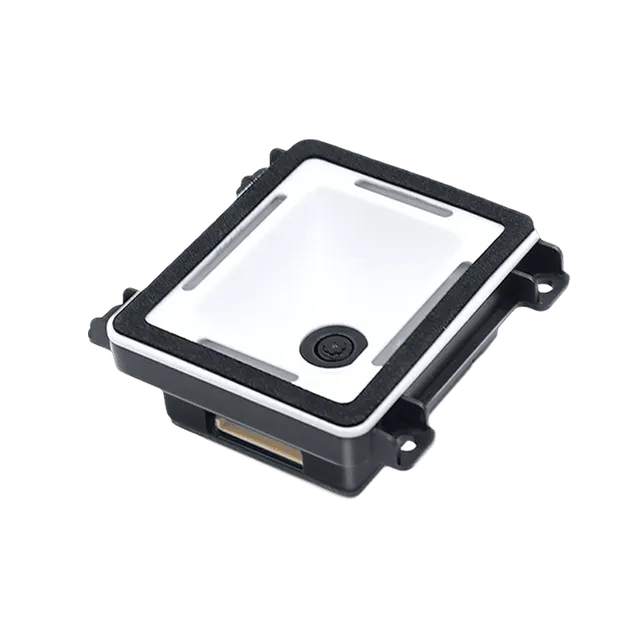

The EM48 is a presentation-style scan module with a very wide 74° × 65° field of view. Codes are read from almost touching the window out to 90 mm, which suits terminals where users hold a phone or ticket up to the reader.

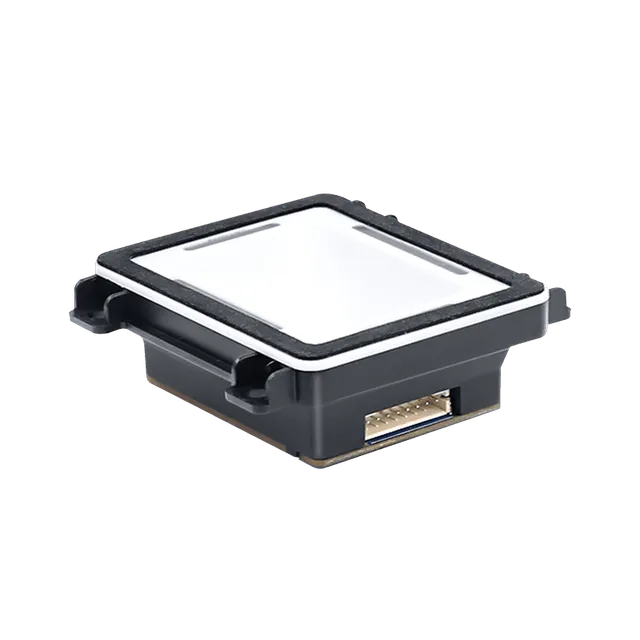

USB and RS232 connections, LED and buzzer signalling and a 5 V supply make it straightforward to add to medical, payment and kiosk equipment.
- Designed for unattended
- Multiple Interfaces
- High performance
- Screen code scanning
02Key features
What sets the EM48 apart
Multiple interfaces
USB and RS232 connections with LED and buzzer signal outputs.
High performance
Reads 3 mil codes with ±70° skew and pitch tolerance and full 360° roll.
Screen code scanning
Reliable on phone screens as well as printed tickets and receipts.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | CMOS | |
|---|---|---|
| Pixels | 640 x 480 | |
| Shutters | global | |
| Illumination | white LED | |
| Aiming | N/A | |

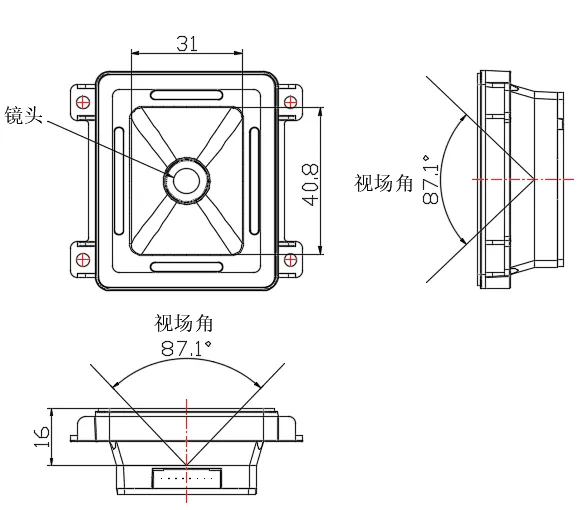

| Field of view | Diagonal 87.1°，Horizontal 74°，Vertical 65° | |
| Symbologies | 2D | QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | EAN-13: (13mil) 5mm~90mm（barcode：31mm*7mm） PDF417 (6mil): 5mm~55mm（barcode：14mm*7mm） Code39 (5mil): 18mm~45mm（barcode：27mm*8mm） Data Matrix (10mil): 5mm~60mm（barcode：5mm*5mm） QR Code (15mil): 5mm~80mm（barcode：10mm*10mm） | |
| Resolution* | 3mil | |
| Symbol contrast* | ≥20% | |
| Scan angles* | Skew±70°，Pitch±70°，Roll 360° | |
Mechanical/electrical parameters

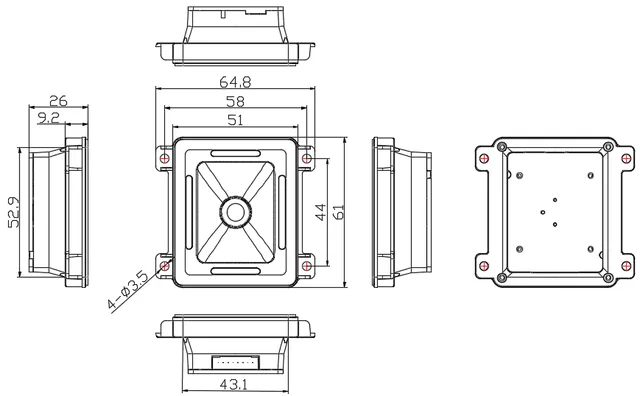

| External Dimension(mm) | 61.1(W)×64.8(D)×26(H) |
|---|---|
| weights | <20g |
| communication interface | USB RS232 |
| Alerts | LED, buzzer signal output |
| operating voltage | 5VDC±5% |
| Operating Current | 210A(RMS Typical)，250mA(RMS Max) |
| Standby Current | 150mA |
Environmental parameters
| operating temperature | -10℃~+60℃ |
|---|---|
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| Ambient light | 0~100000LUX |
04Applications
Where the EM48 fits
