Designed for counter-top use
A stable, hands-free form factor for checkouts, service desks and work stations.

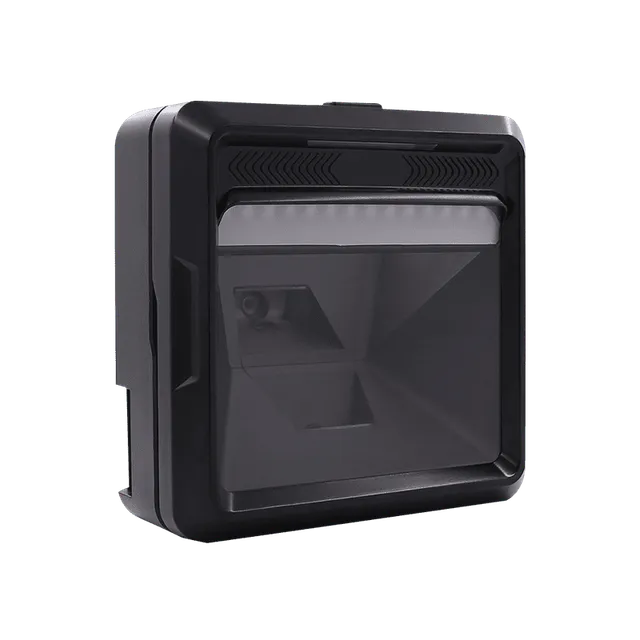

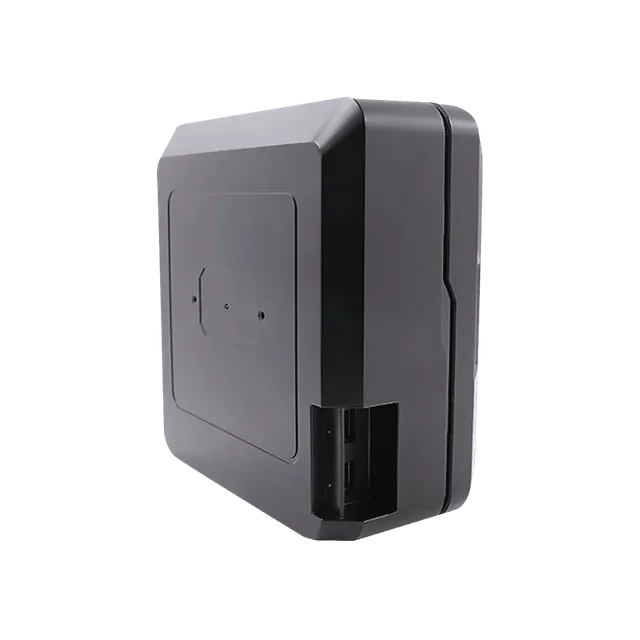

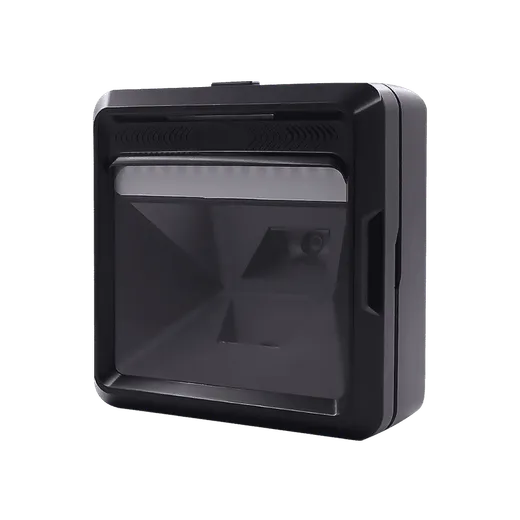

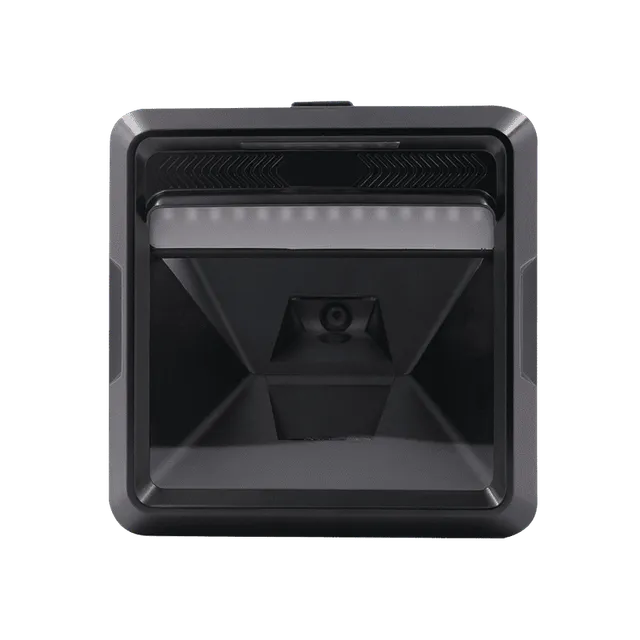

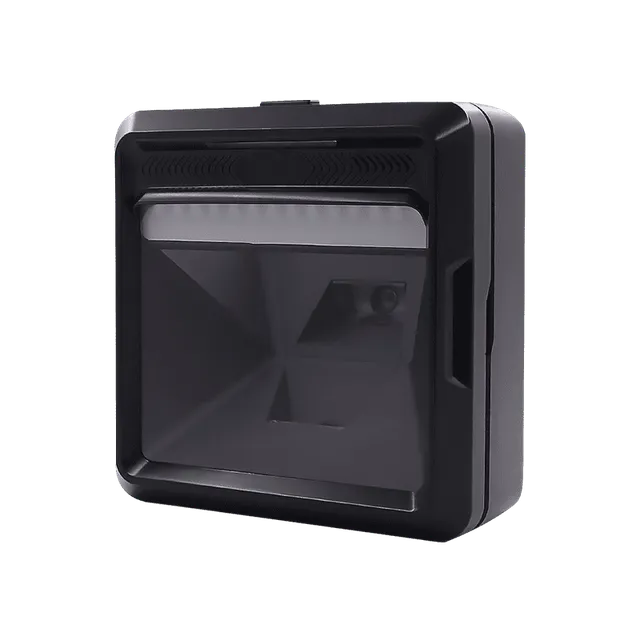

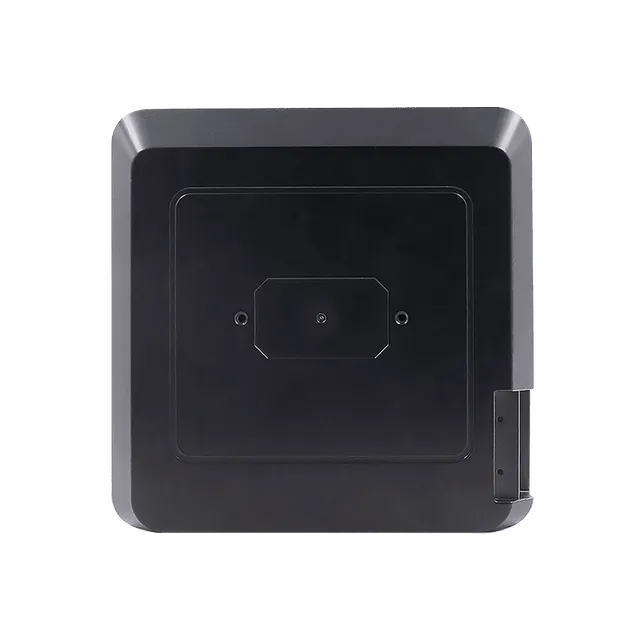

Scan Module
SC80
Counter-top fixed-mount scanner for checkout and automation
- Sensor
- 1280 × 800, global shutter
- Motion tolerance
- 3.5 m/s
- Field of view
- 46° × 30°
- Interfaces
- USB · RS232
- Operating temp.
- -20 to 65 °C
01Overview
Counter-top fixed-mount scanner for checkout and automation
The SC80 is a presentation scanner for counters and fixed stations. A 1280 × 800 global-shutter sensor with 3.5 m/s motion tolerance reads items as they are swept past, without the operator stopping to aim.

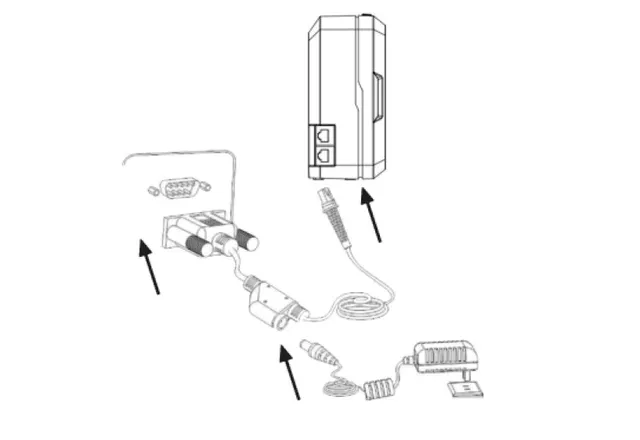

It connects over USB or RS232 and works as a plug-and-play device with most POS and automation systems.
- Designed for counter-top
- Extremely fast and accurate scanning
- Scan from any angle
- Plug & Play
02Key features
What sets the SC80 apart
Fast and accurate scanning
Tolerates item movement up to 3.5 m/s for true sweep scanning.
Scan from any angle
Omnidirectional reading means codes do not need to be lined up.
Plug & play
USB and RS232 connections work with standard POS software out of the box.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | CMOS | |
|---|---|---|
| Pixels | 1280*800 | |
| Shutters | global | |
| Illumination | Red LED | |
| Motion tolerance | 3.5m/s | |
| Field of view | Horizontal 46°，Vertical 30° | |
| Symbologies | 2D | QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | EAN-13 (13mil): 0mm~200mm（barcode：31mm*15mm） Code39 (5mil): 0mm~100mm（barcode：10mm*6mm） | |
| Resolution* | 5mil | |
| Symbol contrast* | ≥20% | |
Mechanical/electrical parameters
| External Dimension(mm) | 1163.5 (W)×76.7(D)×164.4(H) |
|---|---|
| weights | 549g（not include cable） |
| communication interface | USB RS232 |
| Alerts | LED, buzzer signal output |
| operating voltage | 5 VDC±5% |
| Operating Current | 250mA(RMS Typical)，420mA(RMS Max) |
| Standby Current | 150mA |
Environmental parameters
| operating temperature | -20℃~65℃ |
|---|---|
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
04Applications
Where the SC80 fits
Downloads & support
SC80 datasheetPDF documentNeed an SDK, configuration tool, 3D model or samples? Our application engineers will send what your project needs.
