Embedded & fixed-mount modules
Scan Module
Ready-to-mount readers for kiosks, turnstiles, counters and production lines.
01Overview
Our scan modules package a Dokivision engine in a housing with a wide reading window and standard USB, RS232, TTL or RS485 connections. They are designed for unattended use: a customer or operator presents a printed or on-screen code, and the module reads it immediately, in sunlight or in the dark. Models range from a 27 g embedded reader to a counter-top scanner for retail checkout.
- Tuned for phone screens and paper
- Wide field of view for presentation scanning
- USB, RS232, TTL and RS485 options
- Works in ambient light up to 100,000 lux
02Models
4 scan module to choose from
Scan Module

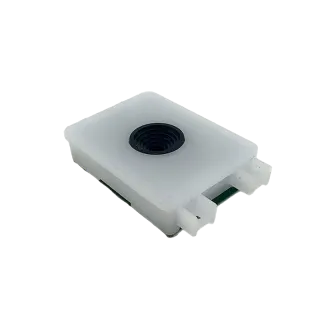

EM20
Embedded 2D scan module for kiosks and turnstiles
- Sensor640 × 480 CMOS
- Field of view72° × 54°
- InterfacesUSB · TTL · RS485
Scan Module

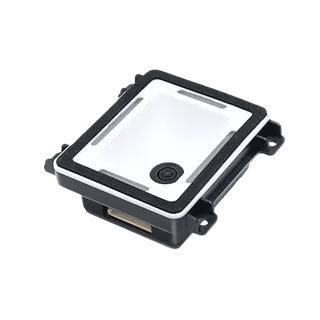

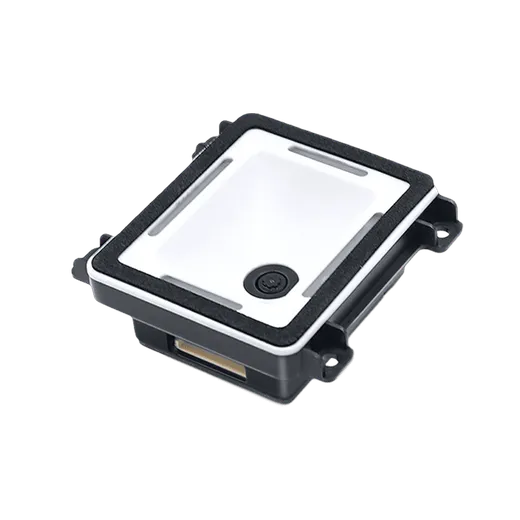

EM48
Compact embedded 2D scan module for unattended terminals
- Sensor640 × 480, global shutter
- Field of view74° × 65°
- InterfacesUSB · RS232
Scan Module
EM95
Wide-angle embedded 2D scan module, industrial grade
- Sensor1280 × 800, global shutter
- Field of view60° × 40°
- InterfacesUSB · RS232
Scan Module

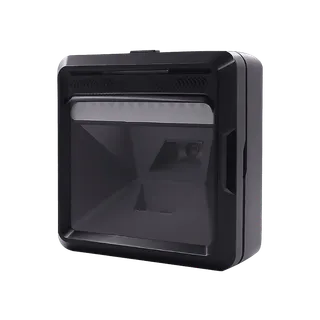

SC80
Counter-top fixed-mount scanner for checkout and automation
- Sensor1280 × 800, global shutter
- Motion tolerance3.5 m/s
- Field of view46° × 30°
03Comparison
Specifications side by side
| Model | Key specifications | Typical use |
|---|---|---|
| EM20 | Sensor640 × 480 CMOSField of view72° × 54°InterfacesUSB · TTL · RS485Size55 × 33.4 × 13.1 mmOperating temp.-20 to 60 °C | Access turnstiles and gates, Payment terminals, Self-service kiosks |
| EM48 | Sensor640 × 480, global shutterField of view74° × 65°InterfacesUSB · RS232Size61.1 × 64.8 × 26 mmOperating temp.-10 to 60 °C | Self-ordering kiosks, Medical self-service terminals, Payment devices |
| EM95 | Sensor1280 × 800, global shutterField of view60° × 40°InterfacesUSB · RS232ProtectionIP52Size115.2 × 96.2 × 50.6 mm | Parking entry and exit, Transit ticketing, Self-service kiosks |
| SC80 | Sensor1280 × 800, global shutterMotion tolerance3.5 m/sField of view46° × 30°InterfacesUSB · RS232Operating temp.-20 to 65 °C | Retail checkout, Pharmacy and convenience stores, Self-checkout stations |
04Applications
Typical uses
Retail & point of sale
Counter-top scanners and embedded modules that read printed labels and mobile payment codes at checkout speed, including loyalty apps and e-coupons shown on phone screens.
Kiosks & self-service
Wide-angle modules designed for unattended terminals: ticketing, vending, lockers, parking and self-ordering, where users simply present a code and walk on.
Access control & transit
Turnstiles, gates and validators that accept QR tickets and passes in bright sunlight or at night, with RS232, RS485, TTL or USB connections to the controller.
Start a project
Tell us what you need to scan
Share your device, code types and reading distance. Our engineers will recommend a model and arrange evaluation samples.
