Software decoding
Decoding runs on the host CPU, reducing engine size, cost and power consumption.
- Sensor
- 1280 × 800, global shutter
- Frame rate
- Up to 60 fps
- Field of view
- 39.5° × 26.1°
- Size
- 23.4 × 16.15 × 6.8 mm
- Weight
- 2.6 g (typical)
01Overview

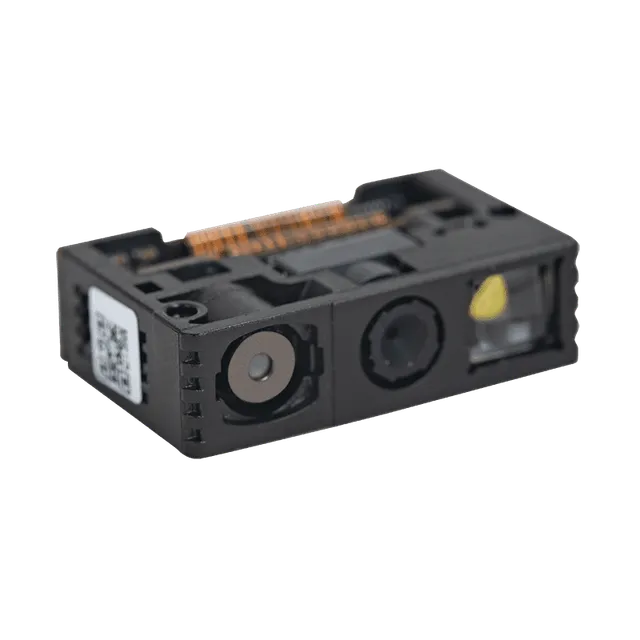

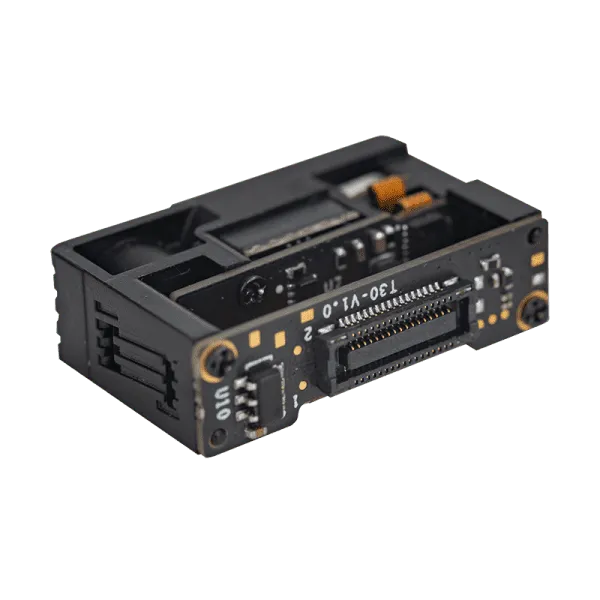

Ultra-compact megapixel engine for software decoding
The E20 is a 2.6 g imaging engine with a 1280 × 800 mono global-shutter sensor delivering up to 60 frames per second. It is designed for software decoding: the engine supplies images and your host processor runs the Dokivision decoding library.
This architecture gives device makers the lowest engine cost and power draw, with full control over decoding behaviour. Typical reading range is 45 to 590 mm on 13 mil EAN-13, and the engine is qualified for repeated 1.2 m drops.
- Software decoding
- Global shutter
- High performance
- Laser aiming
02Key features
What sets the E20 apart
Global shutter
A 60 fps global-shutter sensor captures moving codes cleanly.
High performance
Resolves 1D codes down to 2.5 mil and Data Matrix down to 5 mil.
Laser aiming
A red laser aimer gives precise targeting across the full depth of field.
03Specifications
Technical data
Values marked * depend on test conditions. Refer to the datasheet for details.
PERFORMANCE
| Image sensor | Mono CMOS | |
|---|---|---|
| Pixel | 1280(H)× 800(V) | |
| Shutter | Global shutter | |
| Frame rate | Up to 60fps | |
| Illumination | White light | |
| Aiming | Red laser | |

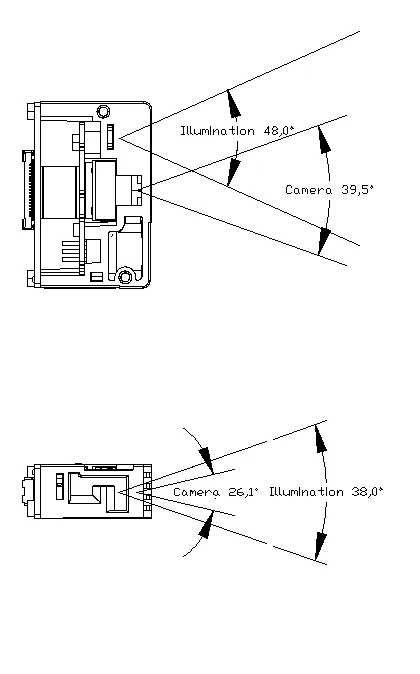

| Field of view | Horizontal 39.5°,Vertical 26.1° | |
| Decode type | 2D | Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc |
| 1D | Standard one-dimensional code | |
| Postal Code | Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc | |
| DOF* | EAN-13(13mil) | 45~590mm |
| Code 39(20mil) | 45~930mm | |
| Code 39(10mil) | 65~470mm | |
| Code 39(5.5mil) | 70~340mm | |
| Code 39(3.9mil) | 60~220mm | |
| Data Matrix(15mil) | 50~420mm | |
| Data Matrix(10mil) | 50~300mm | |
| Resolution* | 1D:2.5mil,Data Matrix:5mil,PDF417:3mil | |
| Contrast* | ≥20% | |
| Angle ** | pitch | ±60° |
| tilt | ±180° | |
| skew | ±60° | |
Mechanical/electrical parameters

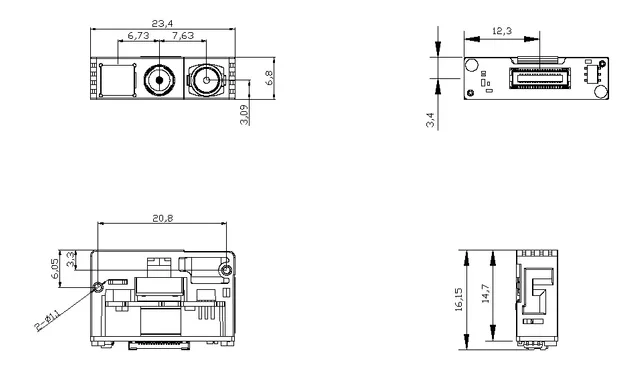

| Dimensions(mm) | 23.4(W)×16.15(D)×6.8(H) |
|---|---|
| Weight | 2.6g(typical) |
| Operating voltage | VCC:3.0~3.6V VCC_IO:3.0~3.6V |
| Operating current | 108mA(Maximum)@VCC 3.3V |
| Standby current | 65mA(Maximum)@VCC 3.3V |
Environmental parameters
| Operating temperature | -20℃~+50℃ |
|---|---|
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95%(No-condensation) |
| Operating vibration | 10~150HZ, 0.5G, triaxial direction, 1min/oct, 1 time/axial |
| Durable vibration | 10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial |
| Fall test | Withstand 1.2m drop to cement floor (50 times of 1.2m repeated) |
04Applications
Where the E20 fits
Downloads & support
E20 datasheetPDF documentNeed an SDK, configuration tool, 3D model or samples? Our application engineers will send what your project needs.
