Compact & Lightweight Design
Multiple Interfaces
High performance
Led aiming
| Image sensor | CMOS | |
| Pixels | 640 x 480 | |
| Shutters | global | |
| Illumination | white LED | |
| Aiming | Red LED | |

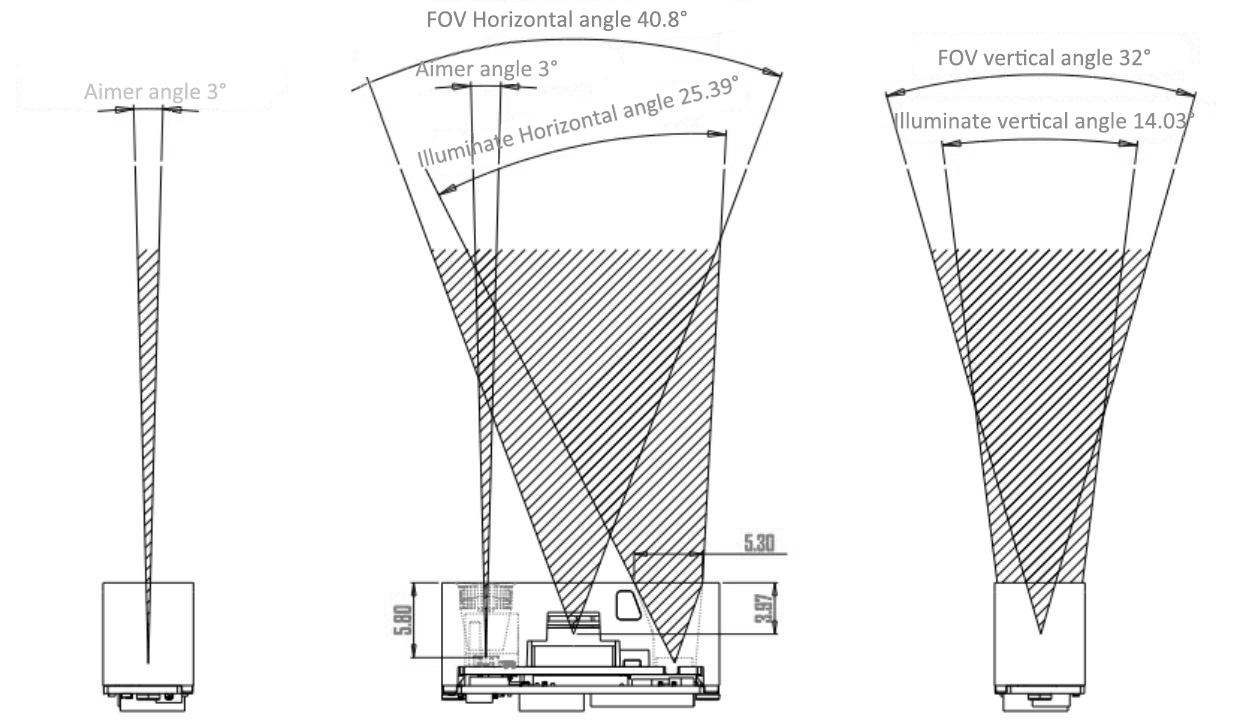

| Field of view | 40.8° horizontal, 32° vertical | |
| Symbologies |
2D |
QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Combosite(CC-A/CC-B/CC-C) |
| 1D | Code128, Code39, Code 39 full ascii, Trioptic Code39, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes by Country | |
| Typical reading depth of field* | 5mil CODE39: 3.5~16cm
13mil EAN13: 5~34cm 10mil Datamatrix: 3.5-18cm 10mil QR: 3~15cm 10mil PDF417: 3~21cm |
|
| Resolution* | 3mil | |
| Symbol contrast* | ≥20% | |
| Scan angles* | tilt: 360°, pitch: ±60°, skew: ±60° | |
| External Dimension(mm) | 21.5(L) x 7.0(W) x 9.9(D) |
| weights | <5g |
| communication interface | UART TTL, USB HID, USB VCOM |
| Alerts | LED, buzzer signal output |
| operating voltage | 3.2~3.6V |
| Operating Current | 230mA@3.3V (sweep state, average current) |
| Standby Current | 40mA@3.3V (standby, USB off)
45mA@3.3V (standby, USB on) |
| operating temperature | -20℃~65℃ |
| Storage temperature | -40℃~70℃ |
| relative humidity | 5%~95% (no condensation) |
| Ambient light | 0~100000LUX |
