Software decoding
- Global shutter
High performance
Laser aiming
| Image sensor | Mono CMOS | |
| Pixel | 1280(H)× 800(V) | |
| Shutter | Global shutter | |
| Frame rate | Up to 60fps | |
| Illumination | White light | |
| Aiming | Red laser | |

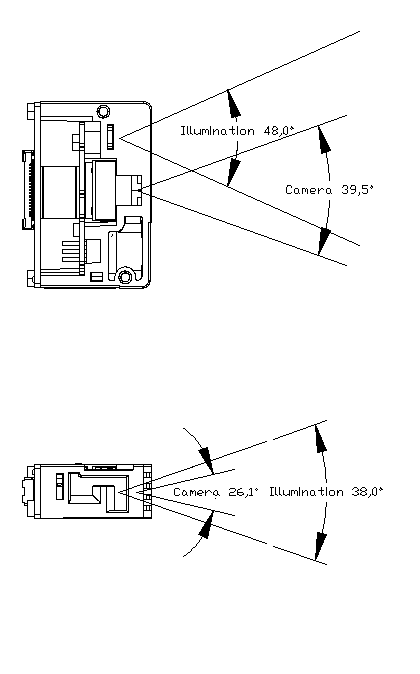

| Field of view | Horizontal 39.5°,Vertical 26.1° | |
| Decode type |
2D |
Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc |
| 1D | Standard one-dimensional code | |
| Postal Code | Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc | |
|
DOF* |
EAN-13(13mil) | 45~590mm |
| Code 39(20mil) | 45~930mm | |
| Code 39(10mil) | 65~470mm | |
| Code 39(5.5mil) | 70~340mm | |
| Code 39(3.9mil) | 60~220mm | |
| Data Matrix(15mil) | 50~420mm | |
| Data Matrix(10mil) | 50~300mm | |
| Resolution* | 1D:2.5mil,Data Matrix:5mil,PDF417:3mil | |
| Contrast* | ≥20% | |
|
Angle ** |
pitch | ±60° |
| tilt | ±180° | |
| skew | ±60° | |
| Operating temperature | -20℃~+50℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95%(No-condensation) |
| Operating vibration | 10~150HZ, 0.5G, triaxial direction, 1min/oct, 1 time/axial |
| Durable vibration | 10~150HZ, 2G, triaxial direction, 1min/oct, 20 times/axial |
| Fall test | Withstand 1.2m drop to cement floor (50 times of 1.2m repeated) |
